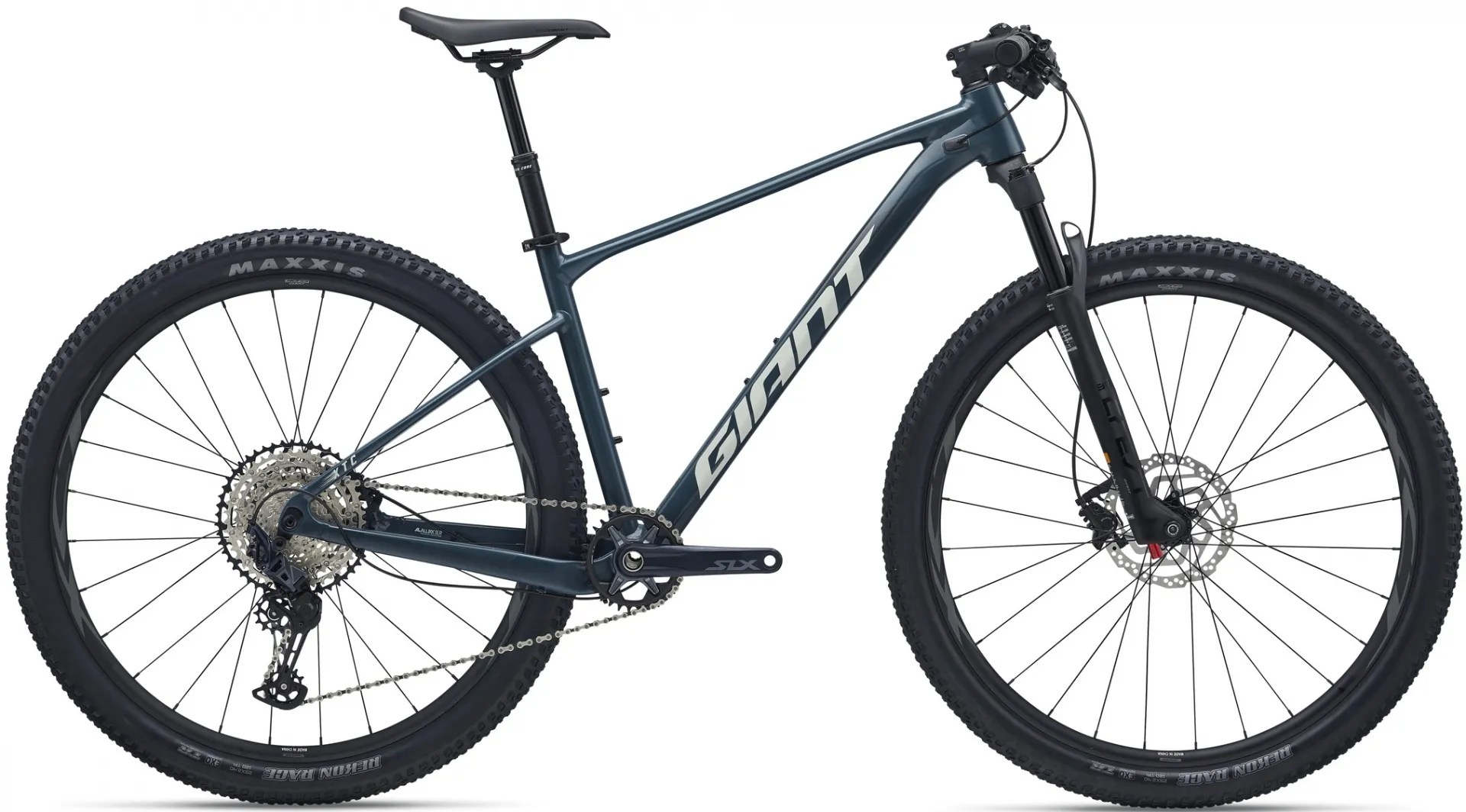

XTC SLR 29 1
Ingeniería Giant
ALUXX SLR Aluminum Technology
This superlight Pro level aluminum material is made predominantly from 6011 alloy and delivers the highest strength-to-weight ratio of any Giant aluminum frameset. State-of-the-art microscopic grain manipulation and advanced butting allows for 20 percent thinner and lighter tube shapes than ALUXX SL framesets.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Geometría
| MEDIDA | S | M | L | XL |
|---|---|---|---|---|
| A Longitud del Tubo del Asiento | 380 | 431 | 475 | 525 |
| A1 Seat Post Insertion Depth | 335 | 205 | 250 | 300 |
| B Ángulo del Tubo del Asiento | 74° | 74° | 74° | 74° |
| C Longitud del Tubo Superior | 595 | 614 | 635 | 665 |
| D Longitud del Tubo de Dirección | 95 | 95 | 105 | 115 |
| E Ángulo del Tubo de Dirección | 69.5° | 69.5° | 70° | 70° |
| F Avance de la Horquilla | 51 | 51 | 51 | 51 |
| G Trail | 95 | 95 | 95 | 95 |
| H Distancia entre Ejes | 1117 | 1136 | 1152 | 1183 |
| I Longitud de la Vaina | 440 | 440 | 440 | 440 |
| J Caída del Eje de Pedalier | 58 | 58 | 58 | 58 |
| K Stack | 607 | 607 | 618 | 628 |
| L Reach | 421 | 440 | 458 | 485 |
| M Altura de Paso | 727 | 757 | 785 | 818 |
| N Ancho del Manillar | 740 | 740 | 740 | 740 |
| O Longitud de la Potencia | 60 | 70 | 80 | 90 |
| P Longitud de la Biela | 170 | 175 | 175 | 175 |
* Todas las medidas en milímetros salvo indicación contraria
Tabla de tallas
Ficha técnica
| Cambio Trasero | Shimano SLX M7100 |
| Cadena | KMC X-12 |
| Multiplicación | Shimano SLX, 32t S:170mm, M:175mm, L:175mm, XL:175mm |
| Frenos | Shimano BR-MT500, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm |
| Palancas de Frenos | Shimano BR-MT501 |
| Ruedas | Giant XCT 29, 25mm inner width |
| Rayos | stainless |
| Grips | Giant Sole-O |
| Asiento | Giant ErgoContact Trail |
| Peso | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
| Cambio Trasero | Shimano SLX M7100 |
| Cadena | KMC X-12 |
| Multiplicación | Shimano SLX, 32t S:170mm, M:175mm, L:175mm, XL:175mm |
| Frenos | Shimano BR-MT500, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm |
| Palancas de Frenos | Shimano BR-MT501 |
| Ruedas | Giant XCT 29, 25mm inner width |
| Rayos | stainless |
| Grips | Giant Sole-O |
| Asiento | Giant ErgoContact Trail |
| Peso | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
